1992 Grandis Max
58cm seat tube ctc, 57cm top tube ctc, 75° head and seat tubes, 39.06" / 99.2 cm wheelbase, Columbus Max tubing. Purchased from Matteo Procura
Components: Shimano Ultegra RD-6500 long cage rear derailleur; Campagnolo Chorus 11 front derailleur; Modolo shifters; Campagnolo Mirage 175mm 34-50 crankset; Shimano Ultegra CS-6500 9 speed 12-27 cassette; [33 - 110 gear inches]; Shimano 600 hubs; Mavic Reflex SUP rims [622x13 6106]; Phil Wood bottom bracket; MKS Compact pedals; CLB Spaceline brakes; Modolo QT-EXE aero brake levers; Tange Levin CDS headset; 3ttt Grandis pantographed 105mm stem; Cinelli b'Groove handlebars; Thomson Elite 27.2mm seatpost; Selle San Marco CFX saddle (180.4 grams)
Weight: 20.64 pounds

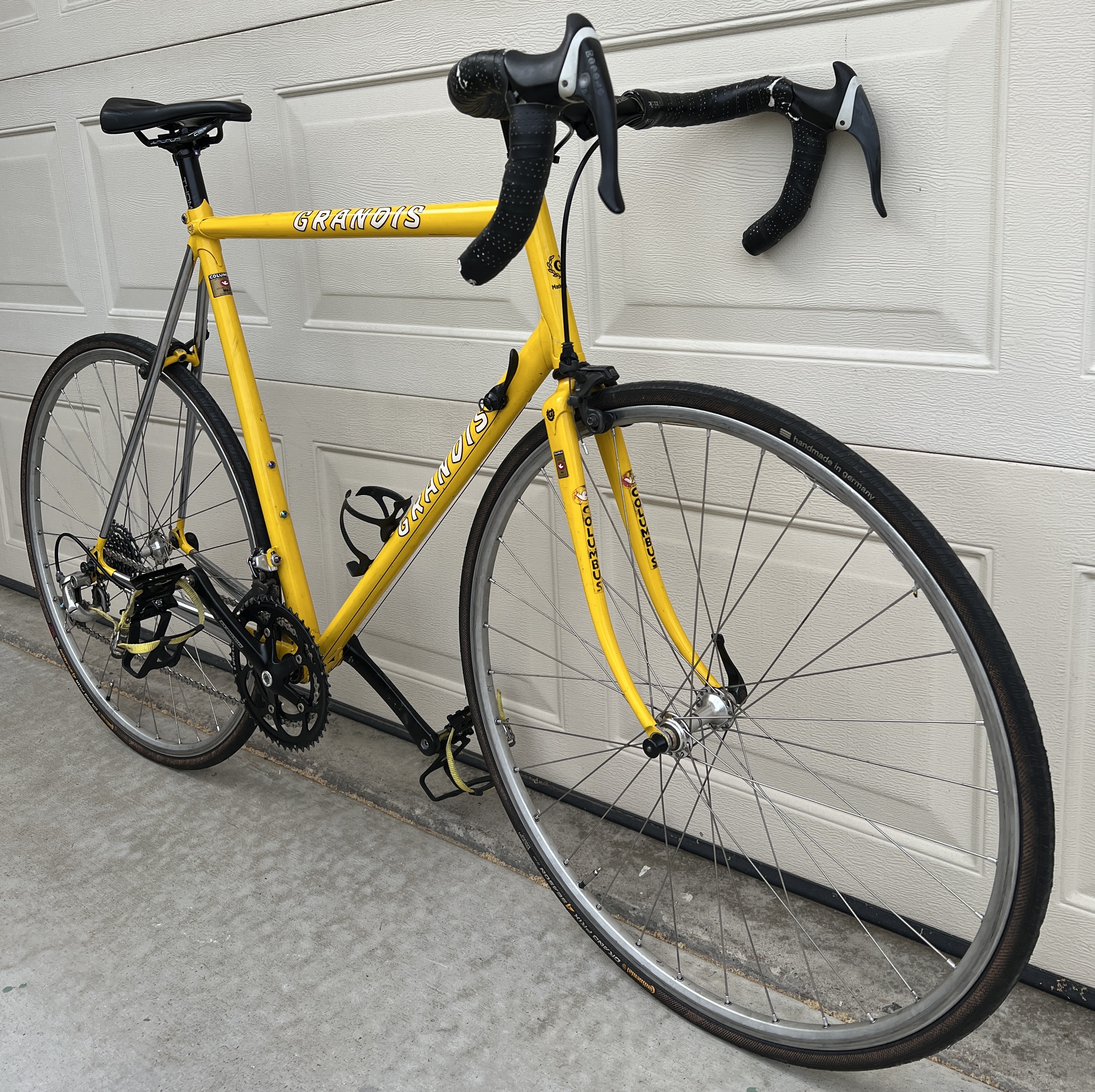

hover your mouse over this image to magnify it or link directly to larger photo

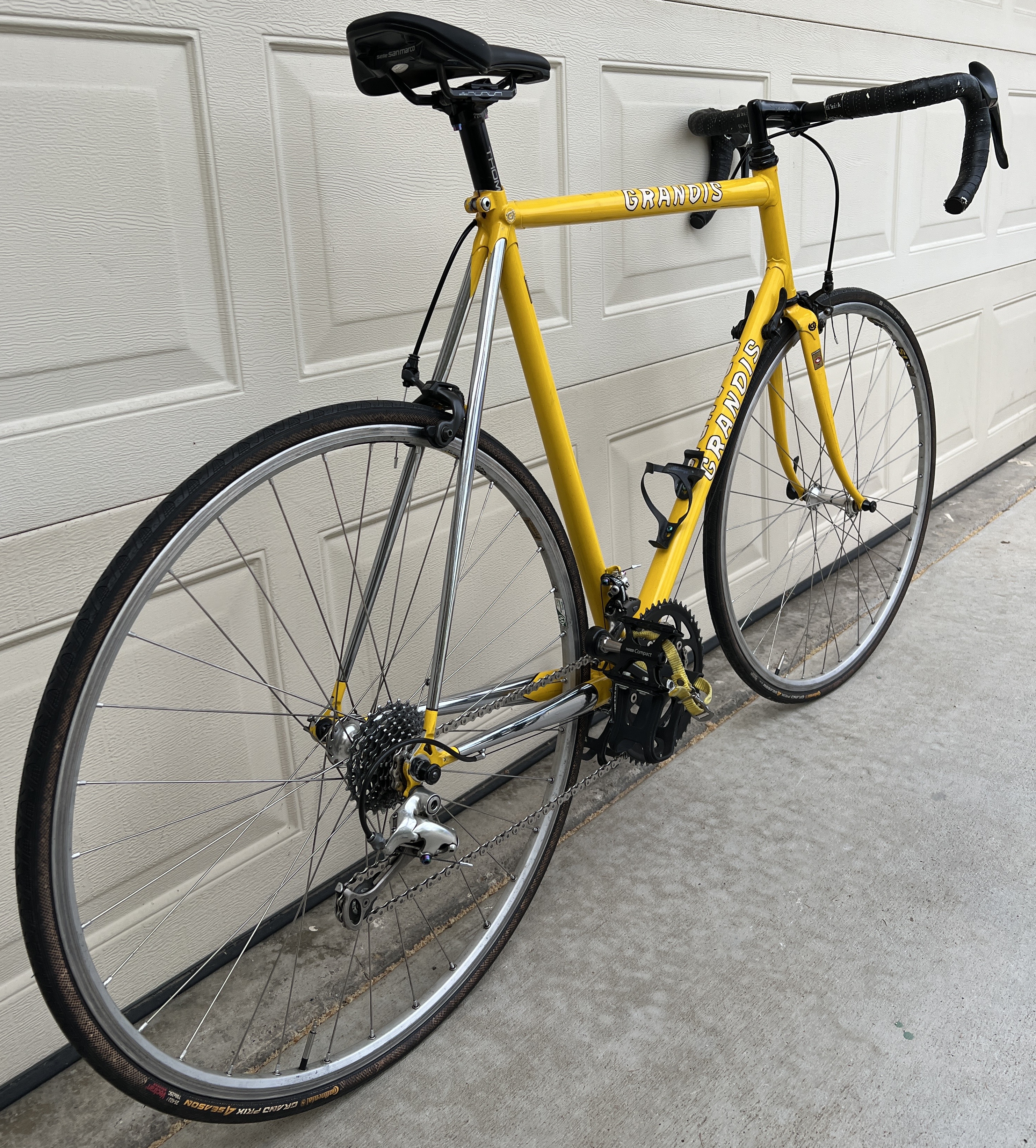

hover your mouse over this image to magnify it or link directly to larger photo

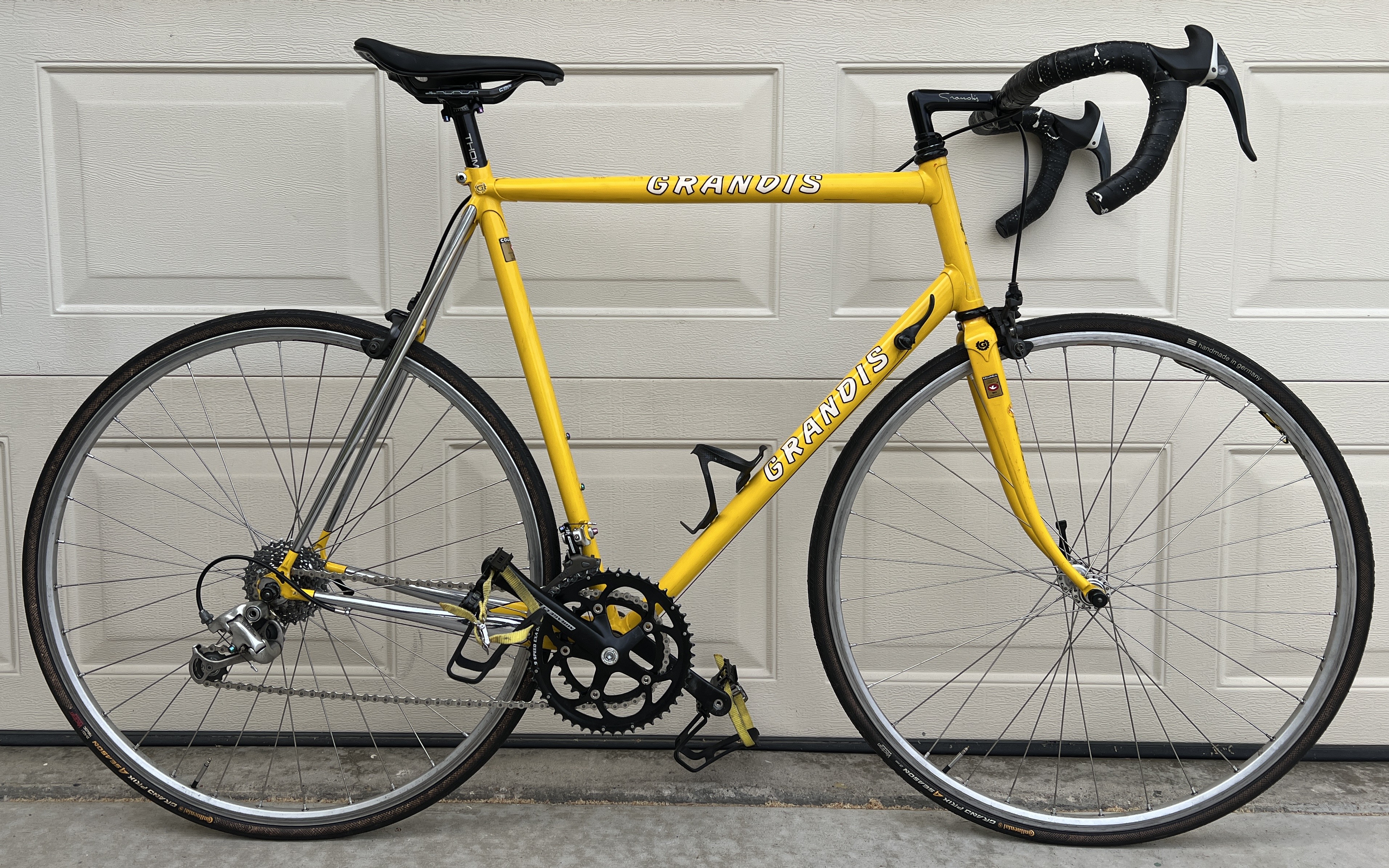

hover your mouse over this image to magnify it or link directly to larger photo

Preceding build of this bike

Dating this Grandis...thank you to Angel Garcia
I have just received this note from Ezio Grandis, indicating that this model was first built in 1990 and can still be ordered today. He also says yours is a 1992.

Angel,Verona 		ciao Angel, il telaio in oggetto è stato prodotto dal 1990 fino al .............. ancora oggi siamo in grado di produrlo. Il telaio in oggetto, penso sia stato prodotto nel 1992.

ciao e.grandis
Grandis s.n.c.
via strada della giara, 11
37034 Verona (VR) -ITALY-

Visit to Grandis: Angelo senza la o Blog
